TUMBLER-INDEX-TESTER

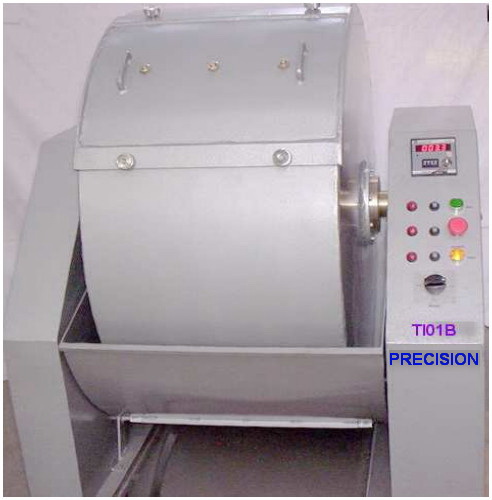

The PRECISION's, TI01B Tumbler Tester for iron oxide lump cores, sinters, and pellets consists of a cylindrical drum constructed of mild steel plate. The two circular sides of the drum have two stub axles attached through two circular flanges. The axles are held in two double-row self-aligning ball bearings with the common axis of the axles located in a horizontal plane. The drum is rotated about its axis at the specified speed with the help of an electric motor, worm reduction gearbox, and Vbelt / pulley arrangement. A pre-set type digital counter is provided to record the number of rotations of the drum and toautomatically stop the motor after a set number of rotations. The bearings on which the drum is pivoted are supported on a heavy-duty fabricated metal frame made from mild steel sections. The motor and worm reduction gearbox are also mounted on the same frame to give a single composite unit. A sheet metal hop- per is provided below the drum to collect the material coming out when the drum is rotated with the door removed. The hopper has a square opening to enable the collected material to be removed. A removable stainless steel tray is provided to collect the material from the drum.

FEATURE:-

Dimensions of drum W 500 mm x L 1000 mm

Thickness of drum sheet 5 to 6 mm

Motor 3 HP

Gear Box Gears with 1:60 Ratio

Shaft Hardened SS material

Speed of rotation of drum 25 +/- 1 RPM

Counter 6 Digit Electronic counter

Dimensions of lifters 50 x 50 x 5 mm thick

Control Panel Digital Time , RPM Control

Programmer PLC /Microcontroller

Structure MS Channels & Angles

RPM 8 minutes : 200 Rotation

1 minute : 25 Rotation
